This instructional video will cover the basics of installing VintageView Metal Wine RacksWS Series Racks. To begin, measure the width of
Click here to view Metal Wine Racks in Contemporary Wine Cellars

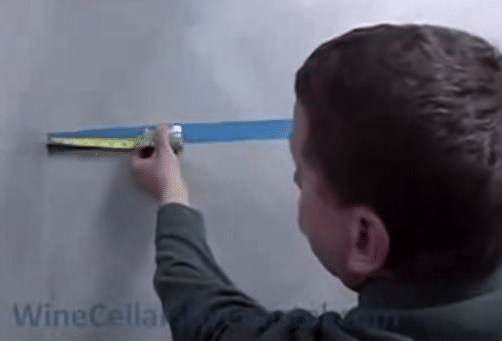

your wall and determine your starting point whether you want to work from the middle out or from one side to the other.
Either way, you will need to allow a minimum of 2 ¾” from any adjacent walls to the center line of the first strip. From there, measure 7 ½” to the center line of the next strip. If installing multiple columns, mark 5 ½” over from the center line of the next strip.

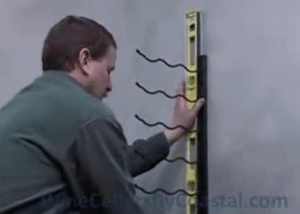

VintageView Metal Wine Racks – Installing the First Strip
Repeat the pattern marking off 7 ½” and 5 ½” for all of your remaining columns. Once your wall is marked off install the first strip.
You may use either a base or an X strip to start with as this determines the direction the necks of the bottles will point. Ensure that each strip is plum or vertical before securing to the wall.
In this installation we have a wood backing to screw into. However, if you’re attaching directly into dry wall we recommend the use of appropriate anchors such as spiral inserts.
